Master Key System Design

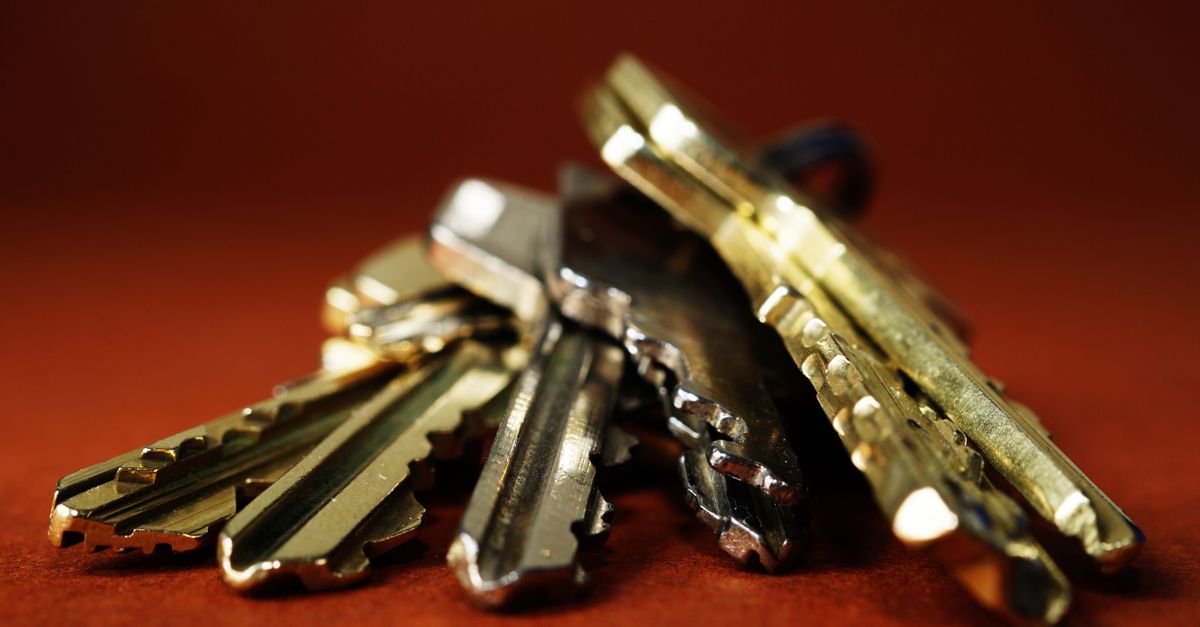

A master key system is built on a principle called key bitting hierarchy. Every lock in the system is pinned with a specific combination of driver pins and master wafers that allow two or more keys — each cut differently — to operate the same cylinder. At the lowest tier, a change key (sometimes called a servant key) opens only one specific lock, such as a single office or storage room. One level up, a sub-master key opens all locks within a defined zone — a floor, a department, or a wing. Above that sits the master key, which operates every lock in the building. For very large properties, a grand master key can sit above multiple master key systems, making it possible to manage access across several buildings or campuses from a single key. The number of tiers you need depends entirely on your organisational structure, your building layout, and how granularly you want to control movement between areas.

What makes the design phase critical is that every tier must be planned before the first cylinder is pinned. Adding locks to an existing, unplanned system later — or trying to retrofit a hierarchy onto a building where cylinders were installed without coordination — almost always results in key conflicts or security gaps. Hamilton Locksmiths maps your floor plan, identifies your access zones, and builds the keying matrix on paper first, so the physical pinning is accurate from day one. We work with high-quality mortise lock cylinders, which are the preferred hardware for serious commercial keying projects because they offer deeper bitting depths and more usable key combinations than standard pin tumbler door knob lock formats.

Choosing the right lock hardware is not cosmetic — it directly determines how many tiers your system can support and how secure each tier is in practice. A mortise lock is installed inside a pocket (the mortise) cut into the door edge, giving it a much larger and more robust body than a surface-mounted door knob lock. This design accommodates a full-sized cylinder with greater pin stack capacity, which translates directly into more available key combinations. For a building with more than two or three access tiers, mortise lock cylinders are essentially the industry standard because they have the mechanical headroom to support complex keying matrices without exhausting the available bitting combinations prematurely.

We install and rekey mortise lock hardware from established manufacturers, and our technicians can work with existing mortise lock bodies already in your doors — often rekeying or replacing only the cylinder rather than the entire lock body, which keeps the project cost-efficient and minimises disruption to your doors and frames. In heritage commercial buildings, which are common across Hamilton's older neighbourhoods like Beasley and Gibson, preserving original door hardware while upgrading the cylinder and keying structure is a service we handle regularly. We always aim for damage-free installation and removal where the door and frame condition allow, and our insured technicians are trained to handle everything from modern commercial-grade hardware to older mortise lock formats found in early twentieth-century masonry buildings.

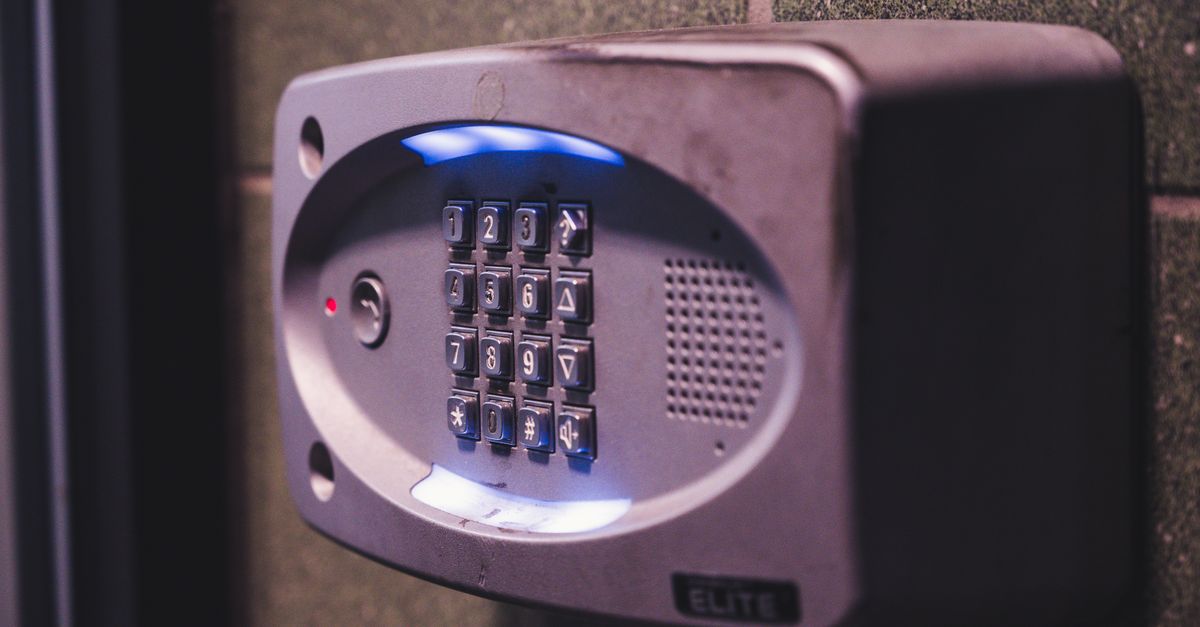

Staff turnover is the most common trigger for an emergency rekeying call in a master-keyed building. When a departing employee holds a change key, the risk is manageable — one cylinder needs to be rekeyed. But when a manager or supervisor leaves with a sub-master, or when a master key is lost or unaccounted for, every lock in the affected tier is potentially compromised. In those situations, waiting until business hours is not a realistic option, and that is exactly why Hamilton Locksmiths operates around the clock. Our mobile emergency locksmith service means a trained technician can be on-site at your Hamilton commercial property any time of day or night, assess which locks fall within the compromised key's operating range, and rekey or replace the affected cylinders before your next business day begins.

The same applies after a break-in, even when no lock was physically defeated. If a door was left unlocked, if a window was accessed, or if there is any doubt about whether keys were taken during an incident, a commercial locksmith assessment is the appropriate next step. We verify building access credentials before beginning any rekeying work — our process includes confirming that the person authorising the work has a legitimate right to do so, which protects both you and us. We also document the changes made so your facilities records stay accurate. If your existing system was not formally designed, this kind of emergency event can actually be a practical opportunity to build a proper tiered hierarchy from the ground up while the cylinders are already being serviced.

A well-built Master Key System Design is only as useful as the key control policy that surrounds it. Key control means maintaining a written or digital record of which key has been issued to which person, what doors that key operates, and when it was issued. Without this, you lose the ability to make informed decisions when a key goes missing or when an employee changes roles. As part of every system we design, we walk building owners and facilities managers through a practical key control framework — not theoretical security policy, but the actual day-to-day record-keeping that keeps your hierarchy intact over months and years.

For Hamilton businesses that operate across multiple floors or buildings — common in the mixed-use developments along James Street North or the office complexes near the LIUNA Station precinct — we can design a grand master structure that unifies access management without over-privileging any individual key. We also advise on restricted keyways, where the key blanks used in your system are not available at hardware stores, adding an additional layer of protection against unauthorised key duplication. Restricted keyway cylinders are available in standard mortise lock and door knob lock formats and can be integrated into an existing door without replacing the lock body in most cases. If your building is due for a new lease cycle, a fit-out, or a security upgrade, this is the right time to get a proper system design in place. Call (289) 814-3758 — we answer 24/7 and can arrange a site visit at a time that works for your operation.
